Description
- Position: Neck
- Resistance: 7.0k
- Inductance: 3.69H
- Recommended Pot Value: 500k
Tone/Characteristic:
The goal was to achieve a musical set of humbucking pickups. With smooth, clear highs in the bridge position, and a no-mud, full-bass tone in the neck position. The result is a workhorse pickup – clear, articulate and punchy – combining all of the best characteristics of a traditional humbucker.
Installation:

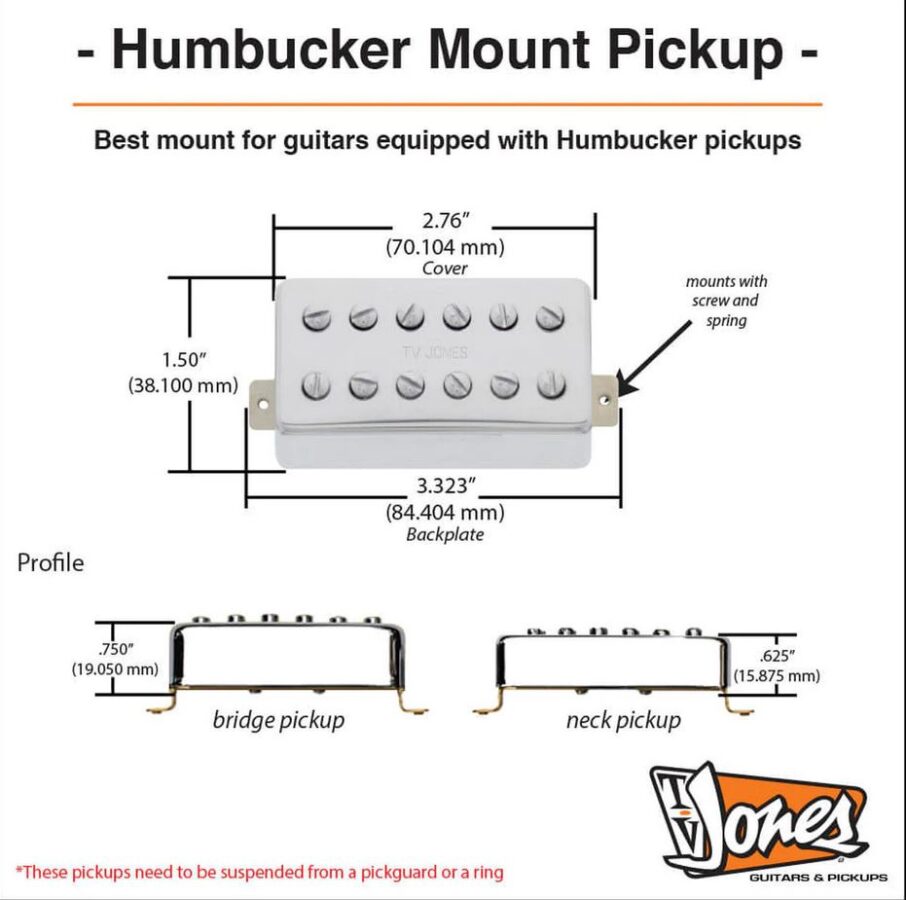

The Humbucker Mount is a direct drop-in replacement for any standard sized humbuckers. This pickup ships with mounting screws and springs for adjustment.
Wiring Notes
This pickup is shipped with 4-conductor wire but is ready for standard 2-conductor connection. The extra red and green wires come soldered together and taped off – to split coils, send these to ground.
Splitting coils works well with the Starwood Humbucker due to higher coil strength. Additionally, the 4-Conductor wire is convenient for custom switching i.e. pickups combined in series or parallel.
Helpful Notes
Humbucker Replacement: The Humbucker Mount is a direct drop in replacement for any standard sized humbuckers. The change in mount does not change the sound of the pickup.
